Thermal evaporation

Evaporate with precision

We design, supply and install Thin Film Evaporation systems and components

Thermal evaporation

Vactec’s thermal evaporation systems stand out in the highly competitive field of PVD
technologies. What sets us apart is our commitment to customization and quality. Each system
we supply, is tailored to the client’s specific requirements, ensuring optimal performance and
efficiency. Our installation process is smooth and seamless, minimizing downtime and
disruption to your operations.

Moreover, our design expertise is grounded in years of experience and advanced knowledge
of thermal evaporation technique. We leverage the latest innovations to design systems that
perform reliably under exacting conditions, delivering consistently high-quality thin films.

Choosing Vactec is choosing an industry leader. Our robust, high-performance systems,
coupled with exceptional customer service, ensure that your production process is efficient,
cost-effective, and produces superior results. We stay ahead of industry trends and
technological advancements, making sure that when you partner with us, you are investing in
the future

Product types

COAT320 Evaporator

More details

COAT340

More details

COAT320 Evaporator

Technical Specification:

  • 550 mm belljar, automatic lift
  • ultimate vacuum < 5E-7 mbar
  • 550 mm Source-to-Substrate distance
  • Temescal STIH270-2 poptop egun, with 6kW high voltage powersupply
  • Dry backingpump 40 m3/hr
  • Cryopump 1500 l/sec
  • PLC1040 control with touchscreen
  • Inficon 310 deposition controller

System provides:

  • ‘One Touch’ full automated pumpdown and deposition processcontrol
  • Datalogging of deposition parameters
  • Excellent access of the e-gun, workholder, quartzcrystalsensor
  • Reliable highvacuum pumpingsystem
  • Excellent uniformity by Rotary sample holder and 50cm Source to Substrate distance
  • Virtual no cross-contamination between materials by unique turretgun design

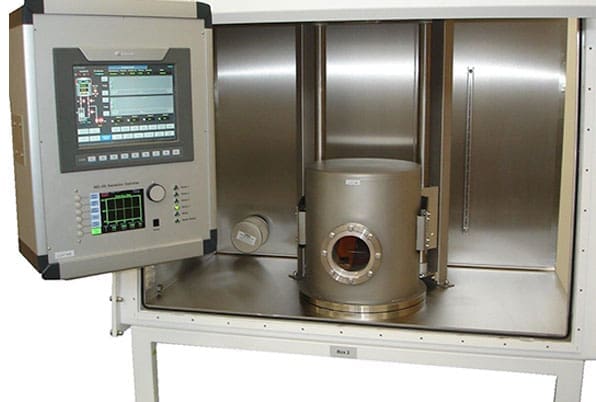

COAT340

Technical Specification:

  • 550 mm belljar, automatic lift
  • ultimate vacuum < 5E-7 mbar
  • 550 mm Source-to-Substrate distance
  • Temescal STIH270-2 poptop egun, with 6kW high voltage powersupply
  • Dry backingpump 40 m3/hr
  • Cryopump 1500 l/sec
  • PLC1040 control with touchscreen
  • Inficon 310 deposition controller

System provides:

  • ‘One Touch’ full automated pumpdown and deposition processcontrol
  • Datalogging of deposition parameters
  • Excellent access of the e-gun, workholder, quartzcrystalsensor
  • Reliable highvacuum pumpingsystem
  • Excellent uniformity by Rotary sample holder and 50cm Source to Substrate distance
  • Virtual no cross-contamination between materials by unique turretgun design
