Evaporate with precision
We design, supply and install Thin Film Evaporation systems and components
Other projects
Rebuilding and upgrading includes assessing the current control, evaluation processes, necessary securities, and desired operational objectives. Our upgrade services are available for various types of evaporation systems, including those used in research and development and industrial settings. We also offer upgrades for E-gun PVD systems, turbo pump, cryo and diffusion pump systems.
Recent projects
Upgrade Organic Evaporator in MBraun Glovebox
- Temperature controller
- LabJack PID controller
- DaqFactory user interface
- Datalogging
- Organic Sources can be Temperature & Rate controlled
Upgrade Thermal Evaporator
- Increase from 6 to 9 samples
- Better performance ultimate pressure <2E-7 mbar
- Shorter pumpdown time < 10 min.
- Fully automated evaporation process
Delivery of one COAT340 & one COAT340ORG Thermal evaporator in MBraun Glovebox
- Belljar evaporator
- Rotary workholder for 9 samples (30x30mm)
- Low ultimate <1E-7 mbar
- PLC control with Vision 1040 including datalogging and ethernet control
- COAT340ORG for evaporation of Organic Materials till 600grC
- Including Co-evaporation
- Inficon Deposition controller with fully automated evaporation process
- Complete delivery, installation and commissioning

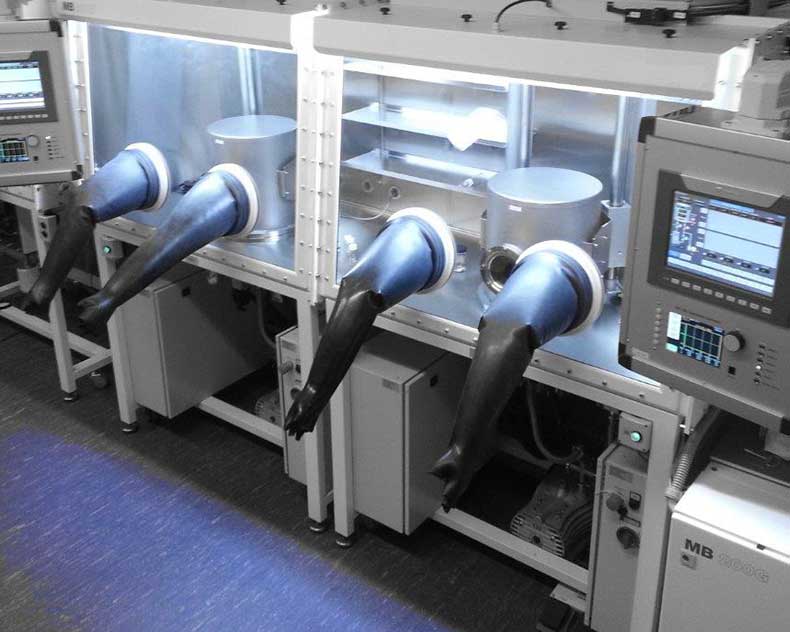

Delivery of two COAT340 Thermal evaporators in MBraun Glovebox
- Belljar evaporator
- Rotary workholder for 9 samples (30x30mm)
- Low ultimate <1E-7 mbar
- PLC control with Vision 1040 including datalogging and ethernet control
- RGA risidual gas analisys 1-100 amu
- Inficon Deposition controller with fully automated evaporation process
- Complete delivery, installation and commissioning
- Including two days Vacuum- & Thin Film Evaporation course

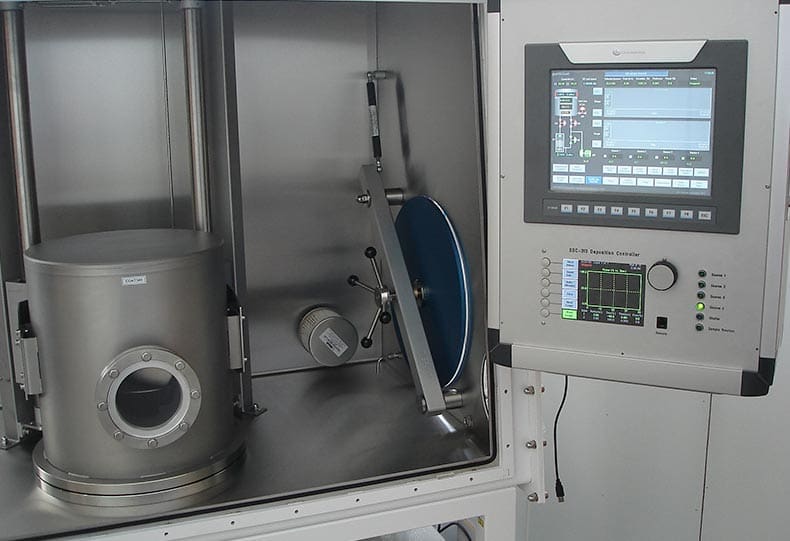

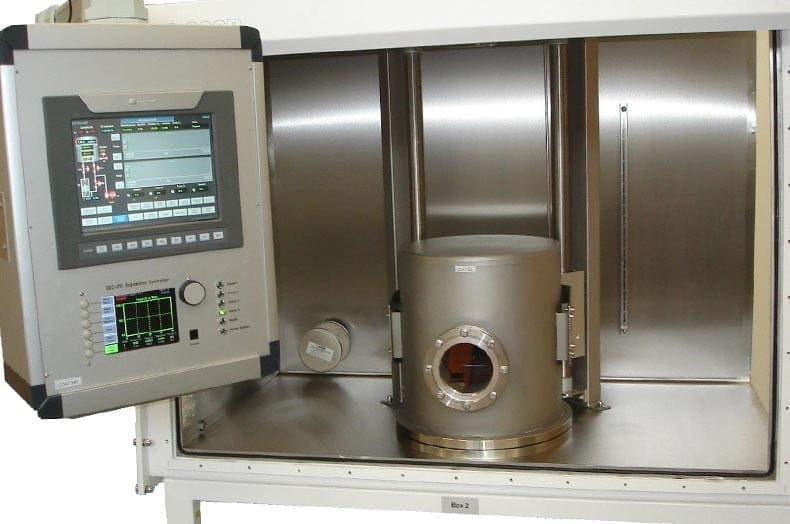

Delivery of COAT340 Thermal evaporator in MBraun Glovebox
- Belljar evaporator
- Rotary workholder for 9 samples (30x30mm)
- Low ultimate <1E-7 mbar
- PLC control with Vision 570, touchscree
- Inficon Deposition controller with fully automated evaporation process
- Complete delivery, installation and commissioning
Design & Delivery UHV e-gun depositionchamber
- Installation of 10kW, 6-pocket turret e-gun
- Turretdrive with indexer & sweepcontroller
- 12kW solid state powesupply
- Shutter and viewing window
- Watercooled shields
Does your business have an upcoming project?
We are happy to brainstorm with you about possible solutions.
